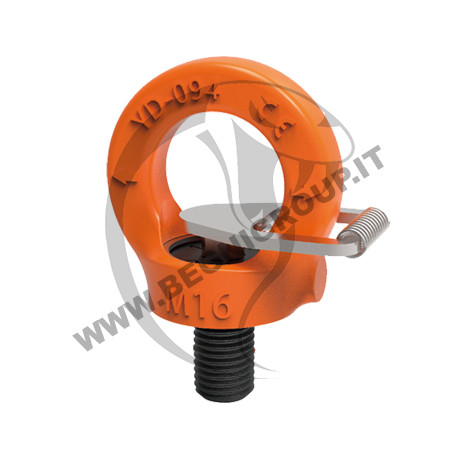

KEP - KEY EYE POINT

Swivel lifting point to lift, turn and tilt loads; to be installed on the load itself through a threaded hole.

✔  Made of high strength G80 steel alloy; precision forging and heat treatment to achieve high performance.
✔  Coated with epoxy resin, to effectively prevent surface corrosion.
✔  Clear mark of WLL and thread on the lifting point body.
✔  Same load capacity in all loading direction.
✔  Orientable at 360°.
✔  Tested at 100% magnaflux.
✔  Tested at 20.000 stress cycles.
✔  Captive screw.
✔  Key in each lifting point.


✔  Wide range of load capacity (M8-M30, 0,3t-4,5t).
✔  Safety factor 4:1.
✔  Compliant to DM2006/42/EC and EN1677-1.


Never exceed published Working Load Limit (WLL)
